Introduction to Mechanical Systems | A3.3

Students must be able toIdentify the four basic types of mechanical motion: linear; rotary; oscillating; and reciprocating.

All movement in a mechanical system can be described using four fundamental motion types:

1. Linear motion: Movement in a straight line from one point to another. The direction may be horizontal, vertical, or at any angle, but the path is straight. Examples: A drawer opening and closing; a lift car travelling up and down; a bullet leaving a barrel; a rack in a rack-and-pinion system.
2. Rotary motion: Continuous rotation around a fixed axis. The most common motion type in mechanical systems. Examples: A gear shaft spinning; a wheel turning; a motor output shaft; a clock hand.
3. Oscillating motion: A back-and-forth arc of movement around a fixed pivot point. Unlike reciprocating motion (which is linear), oscillating motion follows a curved path. Examples: A pendulum swinging; windscreen wipers sweeping; a metronome; a child's swing.
4. Reciprocating motion: A back-and-forth movement along a straight line. Reciprocating motion is linear but reverses direction periodically. Examples: A piston moving up and down inside a cylinder; a saw blade cutting; a sewing machine needle; a bicycle pump.

Converting between motion types is one of the core tasks of mechanical design. A petrol engine converts reciprocating piston motion into rotary crankshaft motion. A rack and pinion converts rotary into linear. A cam converts rotary into reciprocating. Understanding which mechanism achieves which conversion is essential for designing functional products.

Students must be able toDescribe inputs, processes and outputs in the context of mechanical systems.

Every mechanical system can be described using an input–process–output (IPO) model:

• Input: The energy or force applied to the system by the user or a power source. This may be a push, pull, twist, or rotational force.
• Process: The mechanism that transforms the input, changing its magnitude, direction, speed, or type of motion.
• Output: The resulting motion or force delivered to do useful work.

Examples across product types:

The IPO model helps designers identify which mechanism to choose. If an input is rotary and an output must be linear, the process must include a rotary-to-linear converter (rack and pinion, cam, crank and slider). If force magnitude must change, a lever, pulley, or gear ratio provides the process step.

Simple machines are the primitive building blocks: inclined plane, wedge, lever, pulley, wheel and axle, and screw. Every complex mechanism can be traced back to combinations of these six.

Students must be able toOutline a mechanical advantage and suggest how simple mechanical systems may improve performance in terms of function and efficiency.

Mechanical Advantage (MA) is the ratio of the output force produced by a machine to the input force applied by the user:

MA = Output force / Input force = F_out / F_in

MA > 1 means the machine multiplies force (you apply less force than the load requires). MA < 1 means you apply more force than the load, but gain speed or distance. The fundamental trade-off is: you cannot get more work out than you put in. Increasing force means the input must travel a greater distance; increasing speed means less force.

Ideal Mechanical Advantage (IMA) assumes a frictionless, perfect machine. It is calculated from geometry (distances), not actual forces:

IMA = Distance input travels / Distance output travels

Real machines have friction, so Actual Mechanical Advantage (AMA) is always less than IMA. Efficiency = AMA / IMA × 100%.

Inclined plane: Spreads the work of lifting over a longer sloped distance, reducing the force required at each instant.

IMA = Slope length (L) / Vertical height (h)

Example from the chapter: L = 1.46 m, h = 0.5 m → IMA = 1.46 / 0.5 = 2.92. The user applies 2.92 times less force than lifting straight up, but must push the load 1.46 m along the slope rather than 0.5 m straight up.

Wedge: Two inclined planes placed back-to-back. When driven forward, the wedge converts a forward force into two outward (splitting) forces perpendicular to the wedge faces. MA depends on the wedge angle: the thinner the wedge, the greater the MA, but the further it must be driven. Examples: Axe head, knife blade, wood chisel, door stop, ZIP fastener teeth.

Pulleys: A fixed pulley changes the direction of force but not its magnitude (MA = 1). A movable pulley provides MA = 2, because the load is supported by two rope segments. A block and tackle combines multiple movable pulleys; the MA equals the number of rope segments supporting the movable block. A 4-rope block and tackle gives MA = 4 (you lift a 400 N load with 100 N, but must pull 4× the lifting distance).

Wheel and axle: Applies a large effort at the rim (wheel) to produce a larger force at the axle, or vice versa. MA = radius of wheel / radius of axle. Examples: Steering wheel (large wheel radius → small force needed), screwdriver handle (wide handle → large torque at tip), doorknob, winch.

Students must be able toIdentify gear-driven, belt-driven, cam, lever and linkage systems.

Mechanical systems are grouped into five broad families by how they transmit and transform motion and force:

Speed and torque are always traded against each other (assuming constant power). Gearing up (small gear driving large gear) increases torque but reduces speed. Gearing down (large driving small) increases speed but reduces torque. This is the same principle as the inclined plane: gain force, lose distance, or gain speed, lose force.

Direction changes are achieved by bevel gears (90° shaft angle), reverse linkages (opposite linear direction), rack and pinion (rotary ↔ linear), bell-crank linkages (90° direction change), and idler gears (same shaft alignment, reversed rotation).

Students must be able toExplain the basic principles of mechanical motion and discuss how gears, pulleys, cams, levers and linkages can be combined to create complex mechanical systems.

Simple machines become complex mechanical systems when two or more are combined in series or in parallel, each stage transforming the motion or force before passing it to the next. The output of one stage becomes the input of the next.

Everyday complex system examples:

• Can opener: Combines a lever (the handle provides MA to grip the can), a wedge (the cutting wheel pierces and shears the lid), and a wheel and axle (the turning handle drives the cutting wheel around the rim). Three simple machines, one seamless action.
• Car jack (scissor jack): Combines a screw (turning the handle raises the lead screw), a lever (the handle multiplies the turning force), and linkages (the X-shaped scissors convert the horizontal screw motion into vertical lift).
• Bicycle: Combines a lever (pedal arm), chain drive (sprocket to wheel), wheel and axle (road wheel), and on multi-speed versions, a derailleur linkage and multiple gear ratios.
• Petrol engine: Combines reciprocating motion (pistons), a crank and connecting rod (reciprocating → rotary), a camshaft (rotary → reciprocating for valves), and gears/chains (timing, gearbox).

Historical context: Georgius Agricola, De Re Metallica (1556): Agricola's landmark mining engineering treatise documented waterwheel-powered ore-crushing machines. His woodcut illustrations show waterwheels (rotary), linked via gear trains to hammers (reciprocating), with cams on the shaft converting rotary to the repeated hammer blows needed to crush ore. This is essentially the same system as a modern stamping press; the technology is half a millennium old.

Design principle: When analysing a complex mechanism, identify the chain from input to output. At each stage ask: what type of motion enters? What type must leave? What mechanism performs that conversion? This systematic decomposition is the foundation of mechanism design.

Inside a Salad Spinner

Motion conversions in your kitchen

Read spotlight →

Students must be able toIdentify the different types of gear systems (spur, bevel, rack and pinion, worm, ratchet and pawl, idler and compound) and their components, and outline how they are used providing examples.

Gears transmit rotary motion and torque between shafts. When two gears mesh, their teeth interlock: one tooth of the driving gear pushes one tooth of the driven gear. The gear ratio governs the speed and torque relationship:

Gear ratio = Teeth on driven gear / Teeth on driving gear = Speed of driving gear / Speed of driven gear

A 40-tooth driven gear meshing with a 20-tooth driving gear has a ratio of 2:1; the driven gear turns at half the speed but with double the torque.

The main gear types are:

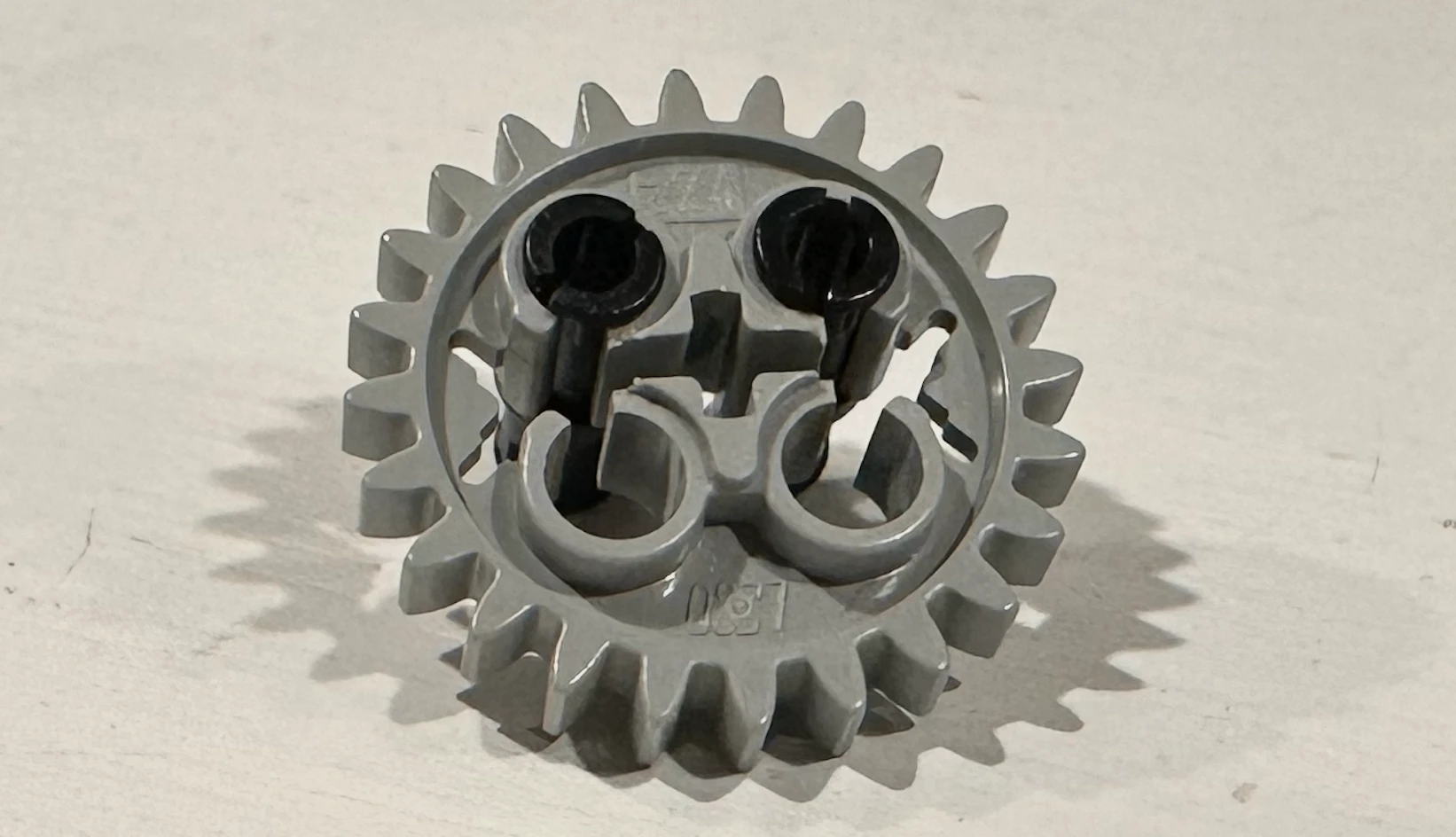

1. Spur gears: Straight teeth cut parallel to the shaft axis. The simplest, most common type. Teeth engage suddenly, which can cause noise at high speeds. Applications: Washing machines, clocks, simple gear trains, electric screwdrivers.

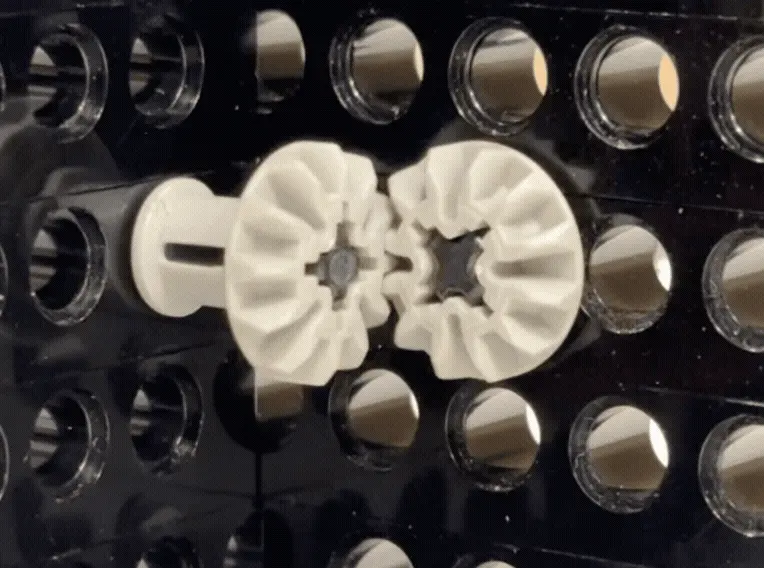

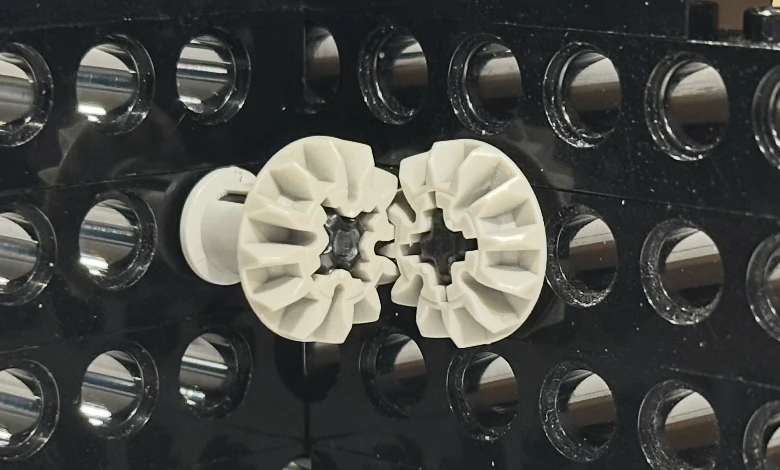

2. Bevel gears: Conical-shaped gears that transmit motion between shafts that intersect at an angle, typically 90°. The cone angle determines the shaft angle. Applications: Automotive differentials (distribute engine power to both rear wheels while allowing speed difference on corners); hand drills.

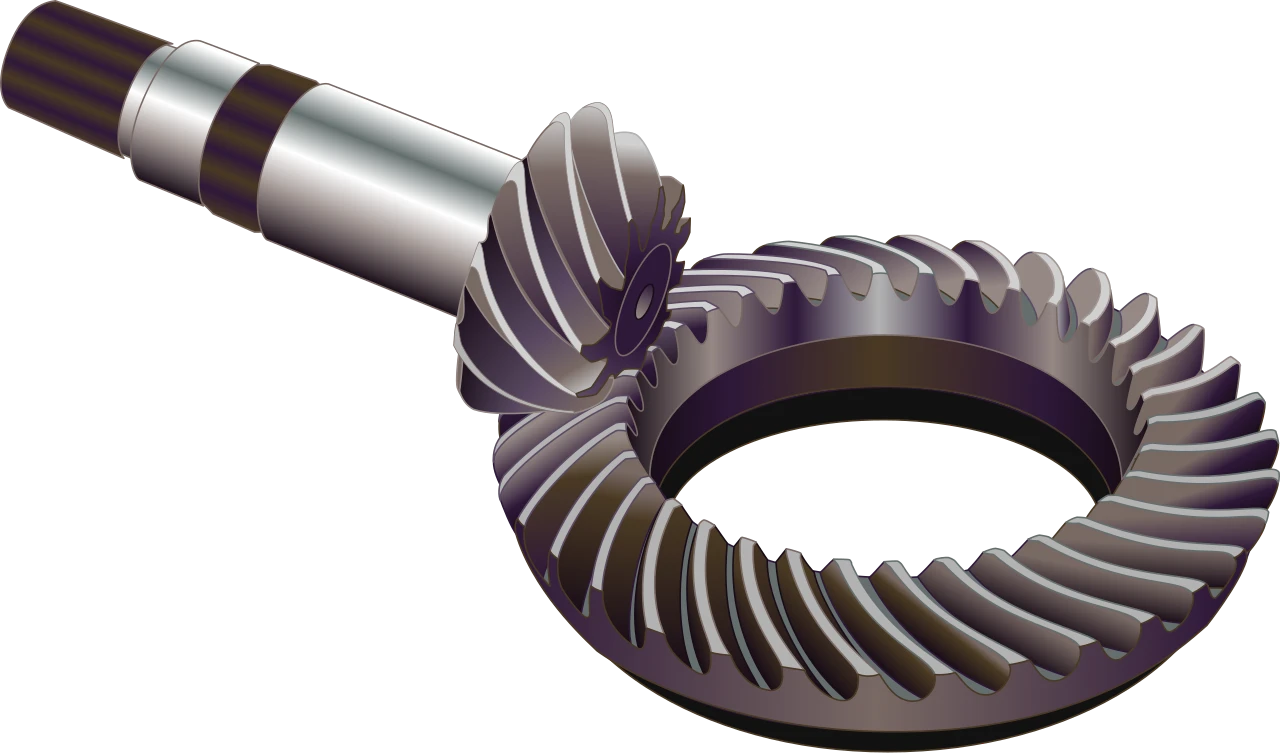

3. Hypoid gears: Similar to spiral bevel gears but with non-intersecting offset shafts: the pinion shaft sits below the ring gear centreline. This allows a lower vehicle floor, a larger pinion for greater strength, and quieter operation due to the spiral tooth engagement. Applications: Rear-wheel drive automobile axles.

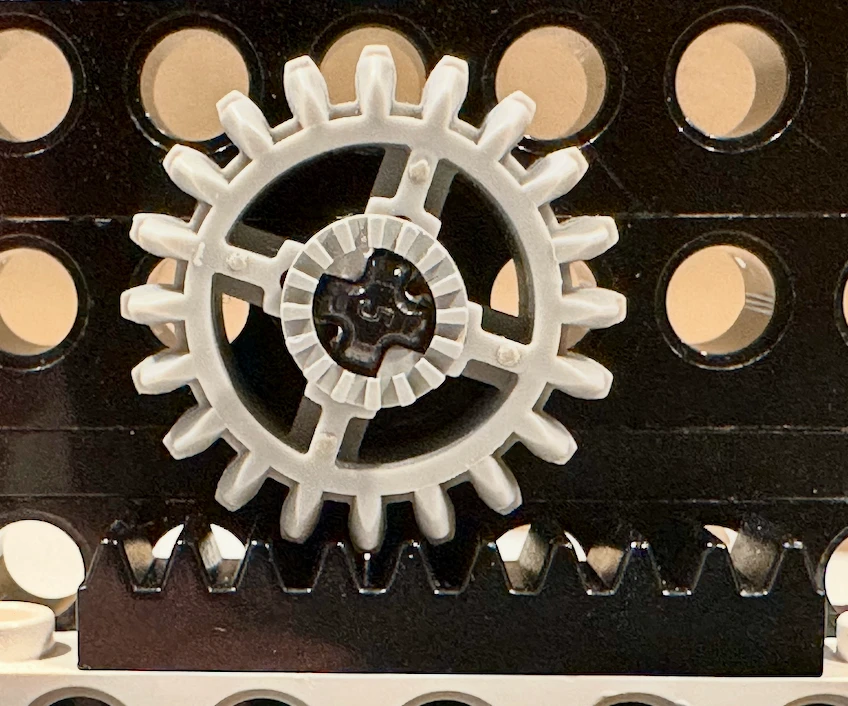

4. Rack and pinion: A cylindrical pinion gear meshes with a flat linear rack. Converts rotary motion to linear motion and vice versa. Applications: Car steering (pinion turns, rack moves tie rods laterally); drill press spindle; railway switches.



5. Ratchet and pawl: A toothed wheel (ratchet) engages a spring-loaded latch (pawl) that allows rotation in one direction only. In the forward direction, the pawl clicks over the teeth. In the reverse direction, the pawl catches and locks. Useful for locking mechanisms. Applications: Socket wrenches (ratchet spanners), mechanical clocks, cable ties, climbing equipment.

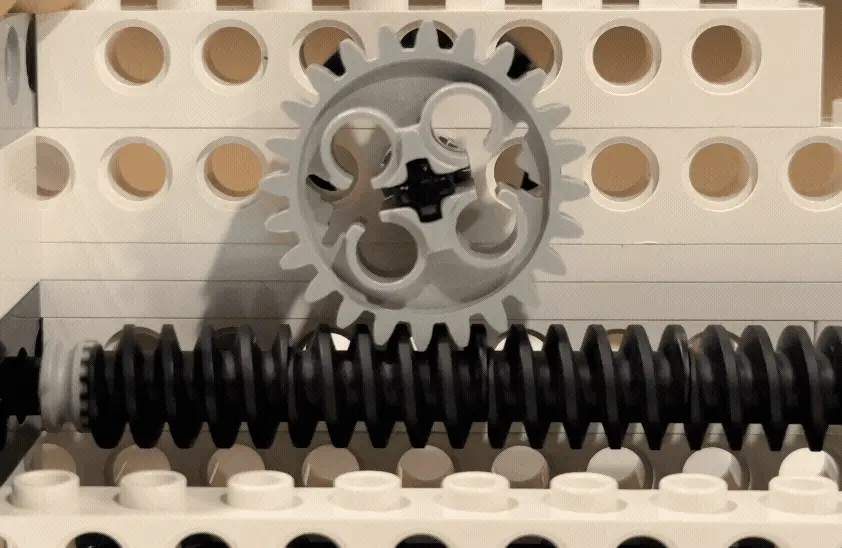

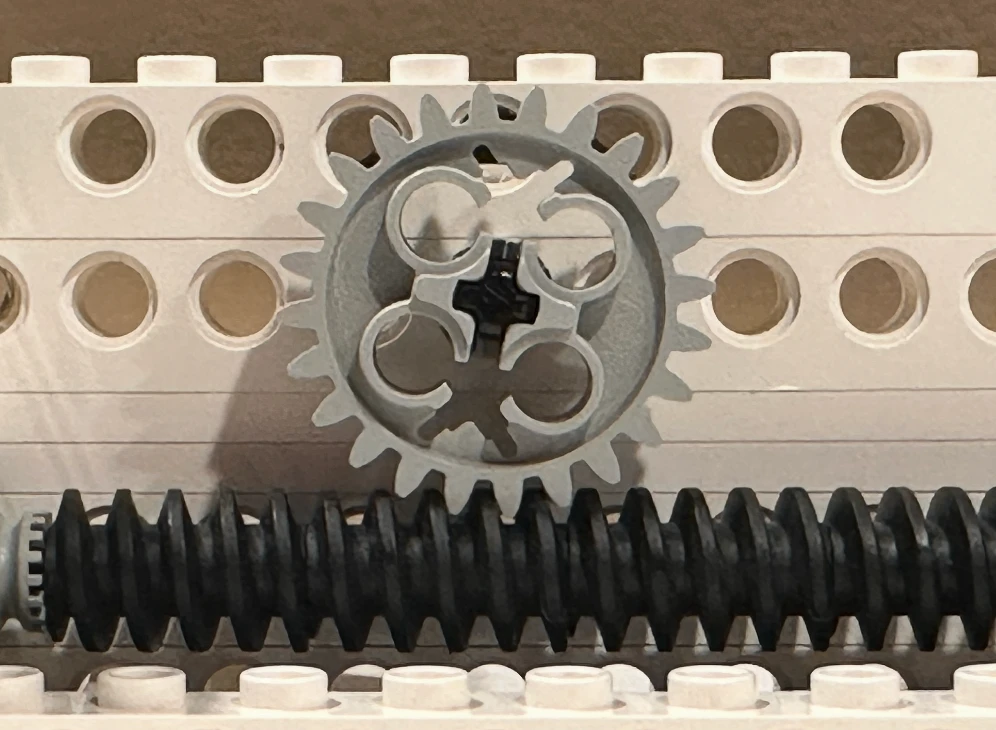

6. Worm gears (screw gears): A helical screw (worm) meshes with a toothed wheel. One full rotation of the worm advances the wheel by just one tooth. This produces high gear reduction in a compact space. The system is usually self-locking: the wheel cannot back-drive the worm. Applications: Lifting equipment (screw jacks, hoists), automotive steering boxes, conveyor systems, tuning pegs on guitars.

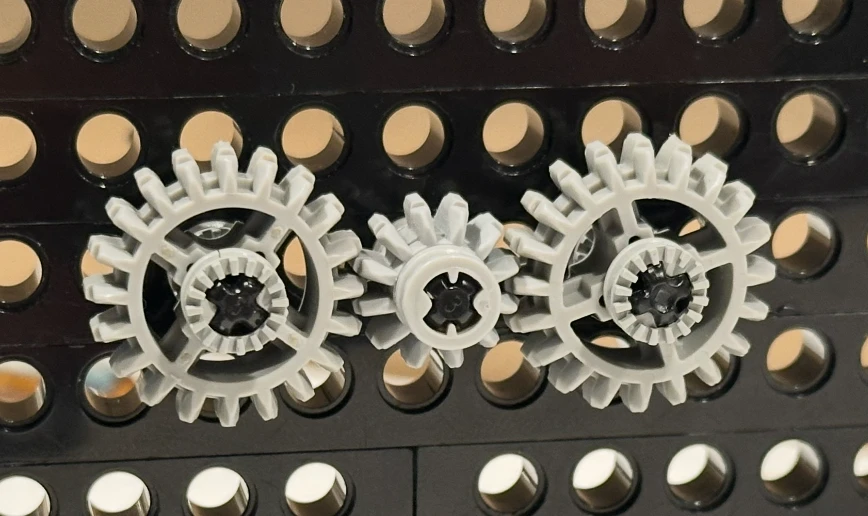

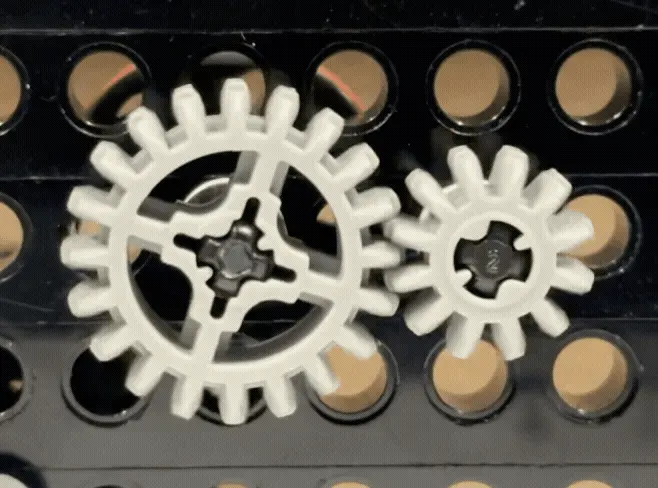

7. Idler gears: A gear placed between two other gears to reverse the direction of rotation of the output gear without changing the speed ratio. An odd number of idlers gives the same rotation direction as the input; an even number gives the opposite. Idlers also allow the driving and driven shafts to be further apart. Applications: Reversing direction in a clock mechanism; print rollers.

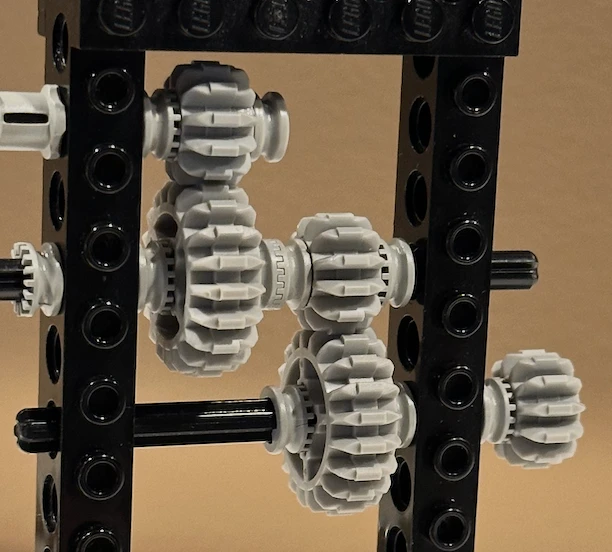

8. Compound gears: Two or more gears fixed on the same shaft, rotating together at the same speed. Because the gears on the same shaft have different tooth counts, each pair in the compound train can multiply the gear ratio. Large speed/torque changes can be achieved in a compact arrangement. Applications: Mechanical watches, multi-speed gearboxes, can opener drives.

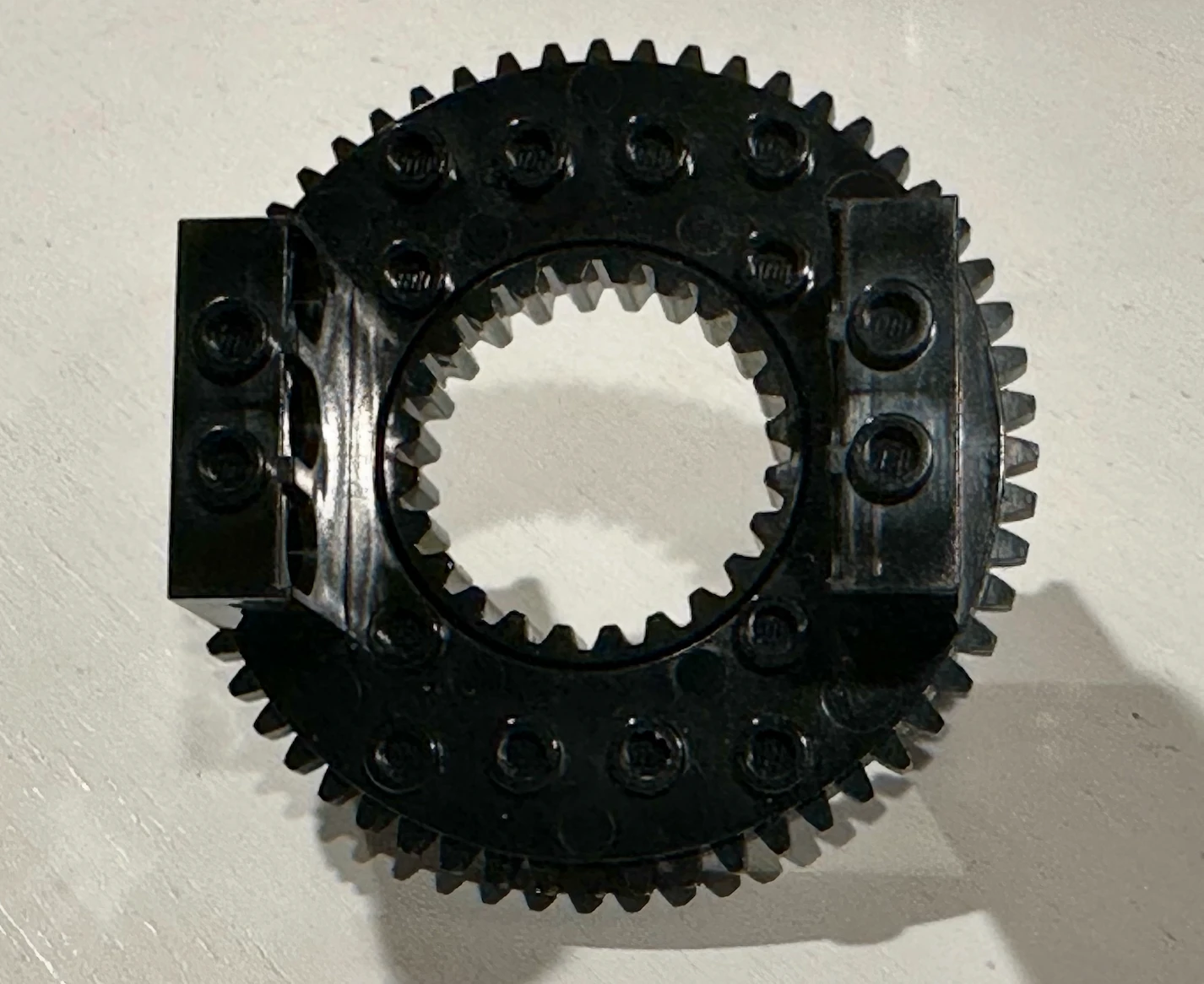

9. Ring Gears: A gear with teeth on the inside of a ring, rather than the outside. Applications: Used as part of planetary gear systems, such as those in engine starters, gearboxes, and automatic transmissions.

Students must be able toIdentify components of pulley systems, and outline how they are used providing examples.

Belt and chain drives transmit rotary power between two or more shafts that are physically separated (unlike gears, which require direct tooth-to-tooth contact).

Belt drives use a continuous flexible belt looped over two or more pulleys. Power transmission relies on friction between the belt and pulley surface. The belt cross-section (flat, V, or toothed) determines how the friction is generated:

• Flat belts: Simple; lower friction; used where some slip is acceptable.
• V-belts: Wedge into a groove in the pulley, increasing normal force and friction. Most common type for industrial power transmission.
• Toothed (synchronous) belts: Have teeth that mesh with matching teeth on the pulley: no slip, precise timing. Used where synchronisation is critical: vehicle timing belts (keeping crankshaft and camshaft in phase), 3D printer drives.

Belt drive speed ratio: Speed ratio = diameter of driven pulley / diameter of driving pulley. A 200 mm driven pulley driven by a 100 mm pulley runs at half the speed of the driving pulley with double the torque.

Historical use: 19th-century factories used a single steam-driven lineshaft running the length of the factory ceiling. Individual machines were connected to the lineshaft by their own belts and pulleys, each with a different pulley ratio to run at the correct speed. The belt drive was the power distribution system of the Industrial Revolution.

Modern belt drive applications: Conveyor belts, vehicle alternator drives, lathe and drill press drives, treadmill decks, gym equipment.

Chain drives use a continuous loop of chain links engaging with the teeth of sprocket wheels. Power is transmitted by meshing (mechanical interlocking), not friction. This eliminates slip and allows precise speed ratios.

• Advantages over belts: No slip; handles heavier loads; more durable; efficient power transmission.
• Disadvantages: Noisier; requires lubrication to reduce wear; heavier; more expensive.

Applications: Bicycles (the classic example: sprocket on pedal crank drives sprocket on rear wheel via chain); motorcycles; industrial conveyors; timing chains in engines; agricultural machinery.

The bicycle chain drive is elegant in its simplicity: changing sprocket sizes (the derailleur system) changes the gear ratio without any gear contact or noise, and the chain is easily replaced when worn.

Students must be able toIdentify different shaped cams (pear, circular, triangular, eccentric, oval and snail) and outline how they are used providing examples.

A cam is a specially shaped plate or cylinder mounted on a rotating shaft. As the shaft turns, a follower (a rod or lever resting against the cam surface) traces the cam profile and converts the rotary motion into a controlled reciprocating or oscillating motion. The exact motion of the follower depends entirely on the cam's shape (profile).

Follower types: Knife-edge (precise, wears quickly), flat-faced (lower surface pressure, less wear), roller (reduced friction, common in engines), and spherical (for curved cam surfaces).

The six standard cam shapes and the motion each produces:

1. Pear cam: Shaped like a pear. The follower remains stationary (dwell) for most of the rotation as the circular portion passes, then rises quickly over the pointed lobe and returns to rest. Produces a short rapid rise-and-fall action. Use: Engine camshafts for valve opening; printing presses.
2. Circular cam (eccentric): A circular disc with its centre of rotation offset from its geometric centre. As it rotates, the follower rises and falls smoothly in a sinusoidal-like pattern. There is no dwell; the follower is always moving. Use: Simple reciprocating pumps; windscreen wiper drives.
3. Triangular cam: Approximately equilateral triangular cross-section with rounded corners. Produces three rise-and-fall cycles per revolution, making the follower oscillate three times for each turn of the shaft. Use: Where multiple strokes per revolution are needed; some loom mechanisms.
4. Eccentric cam: Sometimes used interchangeably with circular cam above. More precisely, any cam whose effective rotation centre is offset. Use: Jigsaws, reciprocating saws: the blade's up-and-down stroke is produced by an eccentric cam on the motor shaft.
5. Oval (elliptical) cam: Egg-shaped or elliptical cross-section. Produces two rise-and-fall cycles per revolution. Smoother than the triangular cam. Use: Some knitting machines; mechanical typewriters.
6. Snail cam (drop cam): Shaped like a snail shell: the follower rises gradually as the cam rotates, then drops suddenly at the "foot" of the snail. Produces a slow rise followed by a rapid drop (or sudden release). Use: Trip hammers; alarm clock striking mechanisms (the hour hand cam releases the striker).

Agricola's 1556 waterwheel-powered ore crushers used snail or lobe cams on a rotating shaft to repeatedly lift and drop heavy hammers. The same cam-and-follower principle powers the valves in every petrol and diesel engine today.

Students must be able toIdentify the three types of levers (1st class, 2nd class and 3rd class) and the position of the Load (L), Effort (E) and the Fulcrum, and outline how they are used providing examples.

A lever is a rigid beam that rotates about a fixed point called the fulcrum. A force called the effort is applied at one point to move a load at another. The lever's class depends on the relative positions of these three elements.

Mechanical advantage of a lever:

MA = Effort arm length / Load arm length

Where the effort arm is the distance from the fulcrum to where effort is applied, and the load arm is the distance from the fulcrum to the load.

First-class lever (F–L–E or E–F–L): The fulcrum is between the load and the effort. MA can be greater than, equal to, or less than 1 depending on the relative arm lengths.

• Tool examples: See-saw (fulcrum in centre), crowbar (fulcrum near load end, MA > 1), scissors (two first-class levers sharing a fulcrum), pliers.
• Human body: The head and neck. The atlanto-occipital joint (base of skull) is the fulcrum. The weight of the head is the load, and the neck muscles (at the back) are the effort. When the head is tilted forward, the load arm is longer than the effort arm: MA < 1. When tilted back, the effort arm is longer: MA > 1.

Second-class lever (F–L–E): The load is between the fulcrum and the effort. The effort arm is always longer than the load arm, so MA is always > 1. A smaller effort can always lift a larger load, but the effort point must travel further than the load.

• Tool examples: Wheelbarrow (wheel is fulcrum, load in the tray, hands provide effort at the handles), bottle opener, nutcracker.
• Human body: Standing on tiptoes (plantarflexion). The ball of the foot (metatarsophalangeal joint) is the fulcrum. Body weight acts at the ankle (load). The calf muscles pull upward via the Achilles tendon at the heel (effort). Since the heel is behind the ankle but the fulcrum is at the ball of the foot, the effort arm is longer than the load arm → MA > 1. A relatively small calf muscle force lifts the whole body.

Third-class lever (F–E–L): The effort is between the fulcrum and the load. The effort arm is always shorter than the load arm, so MA is always < 1. The user must apply more force than the load, but the load moves faster and travels further than the effort point. Third-class levers trade force for speed and range of motion.

• Tool examples: Tweezers (pivot at one end, fingers apply effort in the middle, grip at the far end), fishing rod, broom (lower hand is fulcrum, upper hand is effort, bristles are load).
• Human body: Bicep curl (elbow flexion). The elbow joint is the fulcrum. The hand and weight are the load. The bicep muscle attaches to the radius bone close to the elbow (effort). Because the bicep attachment is very close to the elbow, the effort arm is short relative to the load arm (hand to elbow) → MA < 1. The bicep muscle must produce much more force than the weight being held, but the hand moves through a large arc for a small contraction of the bicep.
• Human body: Knee extension (quadriceps). The knee joint is the fulcrum. The foot/lower leg is the load. The quadriceps tendon attaches to the tibia just below the knee (effort). Same principle as the bicep: MA < 1, but the foot swings quickly through a large range.

Third-class levers dominate in the human body because evolution prioritises speed and range of limb movement over force multiplication; most powerful muscles achieve force through size, not lever geometry.

Students must be able toIdentify parallel, reverse and bell crank linkages, and outline how they are used providing examples.

A linkage is a system of rigid bars (links) connected by pivots (pins or hinges). Unlike gears and belts, linkages do not transmit continuous rotary motion; they guide specific paths of movement, constrain relative motion between parts, or convert one motion type into another over a limited range.

1. Parallel linkage: All links remain parallel to each other throughout the motion. The output member moves in the same direction as the input member, but maintains the same orientation (it does not rotate).

• Mechanism: A four-bar linkage where the two side links (cranks) are equal in length. As one crank moves, the other crank moves identically. The connecting bar (coupler) translates without rotating.
• Applications: Scissor lifts (Mobile Elevated Work Platforms): use a criss-cross X pattern of parallel links to raise a platform while keeping it horizontal. The X pattern uses fixed pivots at the centre of each X and moving pivot points that slide as the lift extends. Important: although the X pattern visually resembles an X, it is still a parallel linkage because the platform moves in the same direction as the input (upward when extended). Pantograph: scales drawings; used by engravers and in railway overhead wire systems. Desk lamps: the arm maintains the shade in any position. Trainset buffer couplings.

2. Reverse linkage: The output member moves in the opposite direction to the input. A central pivot point reverses the motion.

• Mechanism: Two links share a fixed central pivot. When one end moves in one direction, the other end moves in the opposite direction, like a see-saw.
• Applications: Bolt cutters: squeezing the handles together forces the cutting jaws together (handles and jaws move in opposite directions). Vice grips (locking pliers). Brake pedal linkages in vehicles (pushing the pedal forward applies the brakes rearward).

3. Bell-crank linkage: Changes the direction of motion or force by approximately 90°. An L-shaped lever (the bell crank) has its pivot at the corner, so a horizontal input becomes a vertical output, or vice versa.

• Mechanism: A rigid L-shaped or angled lever pivots at its elbow. A push rod connected to one arm creates a pull rod movement in the perpendicular arm.
• Applications: Bicycle rim brakes (caliper brakes): squeezing the brake lever pulls a cable that connects to a bell-crank mechanism at the wheel, pressing the brake pads inward against the rim. The 90° direction change allows the cable to run from the handlebars down to the wheel axle area. Aircraft control systems: converting control cable movement to surface movement. Early telegraph signal relays.

Linkage design principle: The geometry of the pivot points and link lengths determines the path, speed, and force amplification of the output. Changing the ratio of the bell-crank arms changes the mechanical advantage; changing the length ratio in a parallel linkage changes the speed ratio. Linkages are versatile because they guide motion with no friction in the transmission itself (only at the pivot pins), unlike belt and gear systems.
