Scale changes everything. A product made once, a product made ten thousand times and a product made ten million times are not the same design problem, even when the object looks identical. The production system decides what tooling can be justified, what tolerances are achievable, what a single change costs once the line is running, and how many people are involved in making the thing at all.
B4.1 maps the whole spectrum, from craft production through mechanisation and assembly line methods to computer-integrated manufacturing (CIM). Before the Industrial Revolution everything sat at one end of it, shaped from start to finish by a single skilled artisan. A modern smartphone sits at the other, with over a thousand components made across dozens of countries on systems that run around the clock.
No single system is the right answer for every product. Scale, cost, customisation and material each constrain the choice. Understanding how they do is what lets you design something that can actually be made, and what lets you predict how a production decision will show up in the finished object's appearance, function and price.
This is also the topic where the course gets political, whether it says so or not. Choosing between craft production, an assembly line and computer-integrated manufacturing is a choice about labour, about where a product is made, and about who benefits from making it. The efficiency arguments are real and you should learn them properly, because Paper 2 will ask for them. It is worth also noticing what those arguments leave out, a habit that will serve you well in C1.1 and C2.1.
Students must be able toIdentify the most effective type of production system (craft, mechanised, automated, assembly line, hybrid production systems and computer integrated manufacturing (CIM)) used in the manufacture of a given product.
Six main production systems exist on a continuum from human-centred to machine-centred:
| System | Human vs. machine balance | Typical volume | Typical products |
|---|---|---|---|
| Craft production | Almost entirely human; hand tools or simple machines | One-off to very small batches | Custom furniture, jewellery, haute couture, artisan ceramics |
| Mechanised production | Machines operated by humans; workers still guide each step | Small to medium batches | Small-run textiles, workshop metalwork |
| Assembly line production | Standardised tasks; workers perform single repeated operations | High volume, identical products | Ford automobiles, consumer appliances |
| Automated production (CAD/CAM, CNC) | Machines operate autonomously; minimal human intervention | High to very high volume | Precision machined parts, circuit boards |
| Computer-Integrated Manufacturing (CIM) | Entire enterprise automated: design, production, QC, logistics | Very high; mass customisation possible | Modern automotive plants, electronics factories |
| Hybrid production | Strategic combination of the above | Variable | Luxury cars (hand-stitched interior + robot-welded body) |
Before the Industrial Revolution, craft production was the only method. Apprentices spent up to seven years learning multiple skills. Henry Ford's introduction of the moving assembly line ("Fordism") and its standardised part system marked a turning point, and his famous remark that customers could have "any colour as long as it's black" illustrates the trade-off between efficiency and customisation.

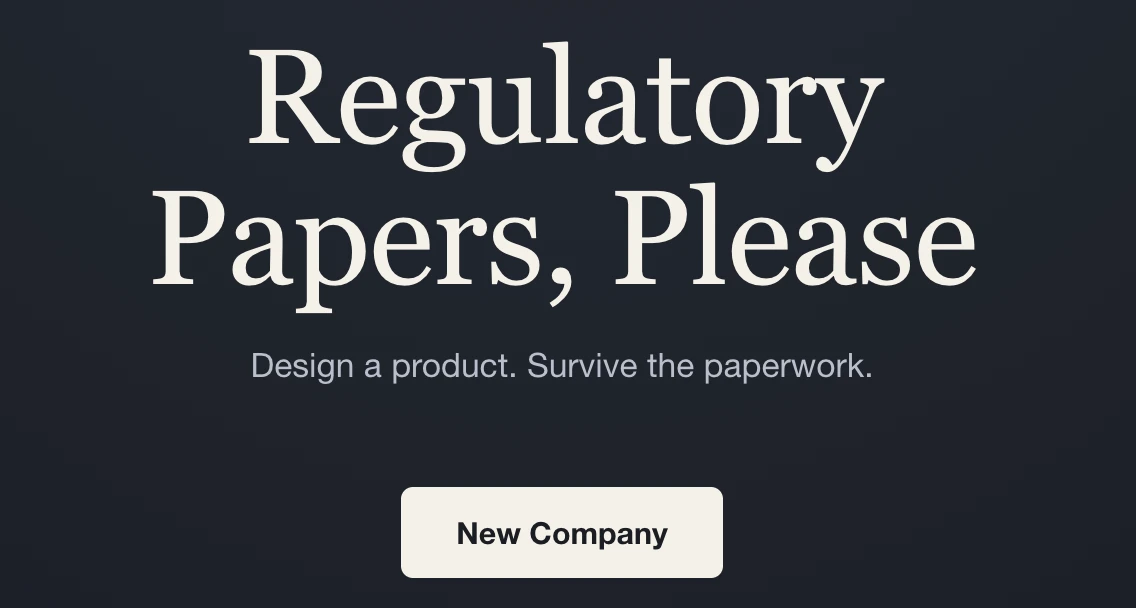

Develop a product from concept to market and watch a corner cut early resurface as a failed safety test, a certification refusal or a recall.
Students must be able toDiscuss the advantages and disadvantages of each production system, including craft production, mechanisation, automation, assembly line, hybrid production systems and CIM.
| System | Advantages | Disadvantages |
|---|---|---|
| Craft production | High customisation; direct client communication; each piece unique; skilled craftsmanship valued | Very slow; labour-intensive; high cost per unit; low volume; inconsistency between pieces |
| Mechanised production | Faster than craft; moderate consistency; lower skill threshold than fully manual | Higher capital cost than craft; still requires significant human oversight |
| Assembly line production | High efficiency; consistent output; economies of scale (lower unit cost at volume); reduced need for skilled labour | High capital investment; inflexible (design changes are costly); monotonous work → worker dissatisfaction; single breakdown halts the whole line |
| Automated production (CNC/CAM) | 24/7 operation; reduced human error; consistent quality; lower long-term labour costs; reduced workplace injuries | High capital investment; requires specialised technical staff; inflexible if product changes |
| CIM | Integrates entire enterprise; enables mass customisation; data accessible globally; near-perfect repeatability | Very high initial setup cost; staff restructuring required; complex interdependencies: software failure can halt production |
| Hybrid production | Balances customisation and efficiency; flexible; suits premium products | Complex to manage; higher cost than pure automation; requires skilled workers alongside machines |
CIM and mass customisation: CIM can produce customised products at near mass-production efficiency. Consumers may follow their order in real time via online interfaces. Distributors worldwide can access production data, enabling just-in-time supply chains.
Students must be able toDetermine appropriate manufacturing techniques for each scale of production, including one-off production, batch production, mass production, mass customisation and continuous production.
Scale of production is the primary driver of system choice. As volume increases, fixed costs are spread over more units, reducing the cost-per-unit. However, higher-volume systems require greater capital investment and offer less flexibility.
| Scale | Volume | System match | Examples |
|---|---|---|---|
| One-off (jobbing) | 1 unit | Craft / manual | Bespoke suit, custom trophy, one-off concept car |
| Batch production | Tens to thousands | Mechanised / semi-automated | Seasonal clothing range, limited-edition sneakers, artisan bread |
| Mass production | Thousands to millions | Assembly line / automated | Standard Ford models, IKEA furniture, PET bottles |
| Mass customisation | Millions of individually configured variants | CIM with flexible automation | Build-to-order laptops (Dell), personalised trainers (Nike By You), Invisalign aligners |
| Continuous (process) production | Non-stop, 24/7 | Fully automated process | Steel mills, petroleum refineries, paper mills, bottling plants |
Key principle: "low-volume work would most likely be produced by craftsmen, whereas high-volume work would be more suited to mechanical and/or automated processes." As volume increases, fixed costs (tooling, equipment) become less significant per unit, while variable costs (labour) dominate less.
Select a product below, then select the production system and scale it actually calls for.
Nike By You lets you pick colours and materials for a shoe built on an existing last, the mould that defines its actual shape and fit. Dell lets you configure a laptop's RAM, storage and colour, but not redesign its hinge or port layout. Invisalign generates a unique aligner for each patient's teeth, but only within a treatment plan built from the company's own software and material set.
In each case, is the customer really designing anything, or just selecting from a large but fixed menu of options that a CIM system can produce without retooling? Where would you draw the line between genuine "mass customisation" and simply offering a lot of variants of a mass-produced product?
Students must be able toDiscuss factors that influence choices of manufacturing techniques, including type of product, material(s) used, scale of production, production system, cost constraints and environmental considerations; and justify the selection of appropriate manufacturing techniques for a product.
Manufacturing technique selection is never made in isolation; multiple factors interact:
| Factor | How it influences technique selection | Example |
|---|---|---|
| Type of product | Geometry, function, and required precision constrain options | A turbine blade requires CNC + investment casting; a water bottle uses blow moulding |
| Material(s) | Formability, machinability, meltability, and compatibility with tooling limit choices | Titanium requires EDM or 5-axis CNC; thermoplastics suit injection moulding |
| Scale of production | High volumes justify tooling investment; low volumes require flexible processes | 1 unit → 3D print; 1 million units → injection mould |
| Production system | Available equipment and workforce skills constrain technique options | A factory with only CNC machines cannot use injection moulding without new investment |
| Cost constraints | Tooling amortisation, material cost, labour cost, and energy cost all factor in | Die casting tooling costs $20,000–$200,000 but per-part cost at volume is very low |
| Environmental considerations | Material waste, energy consumption, emissions, and end-of-life recyclability are increasingly mandatory | Waterjet cutting produces no heat-affected zone and less waste; powder coating has no VOC solvents |
Patent mining (searching databases such as Google Patents, WIPO, and USPTO) helps manufacturers analyse competitor innovations, identify trends, and plan development strategies while avoiding intellectual property infringement.
Students must be able toDeconstruct and analyse multi-component products to determine how they were made and their relevance within the assembly and function of a product.
Reverse engineering (also called teardown or disassembly analysis) is the systematic process of deconstructing an existing product to understand its design, materials, manufacturing methods, and assembly sequence. It is used to reduce development time, identify opportunities for improvement, and benchmark against competitors.
Six-step reverse engineering process:
- External visual examination: Identify materials, joining methods, seams, hidden fasteners, and possible disassembly points. Plan the disassembly sequence. Record by photo/video.
- Disassembly: Carefully remove components using appropriate tools. Label and number every part. Record the entire process to enable reassembly.
- Component analysis: For each part, determine: Is it functional, aesthetic, or safety-related? How does it contribute to overall function? What wear considerations exist? Could it be made redundant?
- Manufacturing analysis: Identify the manufacturing process used for each component. Recognise how processes enhance material properties (work hardening, annealing). Confirm materials by mass, colour, magnetism, and surface finish.
- Assembly analysis: Record the assembly sequence. Determine whether assembly was manual or automated. Assess whether the product is designed for disassembly or is single-use.
- Redundancy assessment: Identify unnecessary parts or overdesigned components that could be eliminated to reduce cost and material.
Useful tools for disassembly: tweezers, magnifying glass, magnet (to identify ferrous metals), screwdrivers of various types, voltmeter (for electronic components).
Students must be able toDiscuss how production methods can influence the function and aesthetics of a product.
Production methods directly shape both the function (how the product works) and the aesthetics (how it looks and feels) of a product. A designer who understands production constraints can design with them, not against them.
| Product | Production method | Effect on function | Effect on aesthetics |
|---|---|---|---|
| Phone case | Injection moulded polymer | Lightweight, durable, consistent wall thickness, snap-fit geometry possible | Smooth uniform surface; wide colour range via pigmented resin; fine moulded textures |
| Phone case (premium) | CNC-machined aluminium + anodising | Higher structural rigidity; scratch resistance; heat dissipation; precise tolerances for camera cutouts | Metallic lustre; jewel-like edges from CNC chamfering; vibrant anodised colours |
| Wooden chair | CNC machining | Precise mortise-and-tenon joints improve structural rigidity; consistent replication | Smooth, clean lines; identical reproductions; intricate carved patterns possible |
| Wooden chair | Hand-carving (craft) | Each piece tailor-made; potential variation in joint quality | Visible craftsmanship; unique grain and ornamental detail in each piece |
| Car body panel | Sheet metal stamping (cold forming) | Work-hardened surface is impact-resistant; aerodynamic curves reduce drag | Smooth consistent curves; pressing dictates the form language of the vehicle |
| Cooking pan | Cast iron (sand casting) | Excellent, even heat retention; robust; develops seasoned non-stick surface over time | Traditional rustic appearance; visible texture; patina develops with age |
Key relationships:
- Forging creates directional grain structure → directional strength (unlike casting, which can be isotropic).
- Annealing (controlled heating and cooling of glass or metal) reduces internal stresses → less likely to crack under load.
- 3D printing (FDM) leaves visible layer lines → distinctive aesthetic that can be hidden by post-processing or embraced as a design feature.
- Cold rolling creates smooth, work-hardened sheet → flat reflective surface finish.
Work hardening (also called strain hardening) is the increase in a metal's strength and hardness that happens when it is repeatedly bent, rolled, hammered or stamped at room temperature. The mechanical deformation creates and tangles dislocations inside the metal's crystal structure; the more tangled these dislocations become, the more the material resists further deformation, so it becomes harder and stronger but also less ductile.
This is why cold rolling, sheet metal stamping and forging all leave a part stronger than the unworked material it started as: the table above shows a car body panel gaining impact resistance from stamping and a cold-rolled sheet gaining a flat, reflective finish, both as direct side effects of work hardening. If a part needs to be reshaped further after this point, it is often softened first using a heat treatment such as annealing (see the forging/annealing row above), which reverses the effect by letting the dislocations relax.
- Sheet metal stamping: a car body panel becomes stiffer and more impact-resistant than the flat sheet it was pressed from
- Cold rolling: repeated rolling produces a harder, smoother, more reflective sheet surface
- Repeated bending of wire: a paperclip becomes stiff and brittle at the bend point, and eventually snaps
Ten questions covering the learning objectives for this topic. Select one answer per question, then click "Check all answers" to see your score and the explanations.
Show example answer
Craft production: skilled artisans create individual products by hand or with minimal mechanisation. Apprentices historically served up to seven years learning multiple skills. Products are unique and made to client specifications. Advantage: high customisation; direct client–maker communication. Disadvantage: slow, labour-intensive, high per-unit cost, low volume. (1+1)
Assembly line production (refined by Henry Ford, "Fordism"): products move along conveyors past workers who perform single, repetitive operations. Standardised parts enable consistent large volumes. Advantage: high efficiency; economies of scale; consistent output; reduced need for skilled labour. Disadvantage: high capital investment; inflexible (design changes costly); monotonous work → dissatisfied workers; one breakdown halts the whole line. (1+1)
Show example answer
Craft production (very low volume, very high customisation): products made by hand. Each piece is unique. Suitable for one-off or very small batches (custom jewellery, bespoke furniture). Choose when customers demand uniqueness and will pay a premium. (1)
Mechanised production (low–medium volume, medium customisation): machines operated by humans increase efficiency beyond handwork. Suitable for small–medium batches where full automation is unjustified. (1)
Assembly line production (high volume, very low customisation): standardised parts move along conveyors; workers perform single repetitive tasks. Economies of scale reduce unit cost. Suitable for mass-produced identical products (Ford cars, PET bottles). High initial capital justified by volume. (1)
Automated production / CIM (very high volume, mass customisation possible): CAD/CAM, CNC, robotics, minimal human intervention. 24/7 operation; fine tolerances; near-perfect repeatability. CIM integrates design, production, QC and logistics. Mass customisation possible: each product configured differently at near mass-production cost. (1)
Scale influence: as volume increases, fixed costs (tooling, equipment) per unit decrease; variable costs (labour) decrease proportionally for automated systems. Low-volume → craft (low fixed cost, high variable). High-volume → automated (high fixed, low variable). The crossover point determines when tooling investment becomes cost-effective. (1+1)
Show example answer
Benefits (any 3 × 1 mark):
- Mass customisation: unlike assembly lines that produce identical products, CIM enables individually configured products at near mass-production efficiency. (1)
- Integrated coordination: CIM links design, production, stock control, QC and logistics: design changes in CAD automatically update manufacturing instructions, reducing errors. (1)
- 24/7 operation and reduced human error: automated systems operate continuously with near-perfect repeatability, improving quality consistency. (1)
- Global data access: production data is accessible to distributors and clients worldwide, improving supply chain coordination. (1)
Challenges (any 2 × 1 mark):
- High initial capital investment: CIM requires significant expenditure on advanced machinery, robotics, sensors, and software. (1)
- Staff restructuring and morale: workers accustomed to assembly line tasks must be retrained or replaced. Staff morale and resistance to change are real risks. (1)
- Interdependency risk: CIM systems are highly interconnected: a software bug or sensor failure can disrupt the entire production system. (1)
Show example answer
- External visual examination: identify materials, joining techniques, seams, hidden fasteners, and develop a disassembly plan. Record with photographs or video. (1)
- Disassembly: carefully remove components using appropriate tools; label and number all parts to enable reassembly. (1)
- Component analysis: for each part, determine whether it is functional, aesthetic, or safety-related; assess wear, interaction with other parts, and whether it could be eliminated. (1)
- Manufacturing analysis: identify the manufacturing process used; recognise how processes altered material properties (e.g., work hardening, annealing); confirm material by mass, colour, magnetism. (1)
Tool: a magnet can distinguish ferrous from non-ferrous metals without destructive testing.
Show example answer
Wooden chair:
- CNC machining: precise mortise-and-tenon joints → structural rigidity (function); smooth, clean lines; identical reproductions (aesthetics). (1)
- Hand-carving: tailor-made joints, but potential variation in quality (function); unique visible craftsmanship, grain and ornamental detail in each piece (aesthetics). (1)
Car body panel:
- Sheet metal stamping (cold forming): work-hardened surface → impact-resistant, aerodynamic curves reduce drag (function); smooth consistent curves; stamping limits the form language of the design (aesthetics). (1)
- Carbon fibre layup: extremely lightweight and stiff (function); smooth coloured surface or exposed woven texture: distinctively high-tech (aesthetics). (1)
Cooking pan:
- Die-cast aluminium: excellent heat distribution, lightweight (function); sleek, modern finish (aesthetics). (1)
- Cast iron (sand casting): superior heat retention; robust; develops natural non-stick "seasoning" over time (function); traditional rustic appearance with visible texture; patina ages well (aesthetics). (1)
Linking Questions
- To what extent are prototyping techniques becoming production systems? (A2.2)
- Which aspects of structural, mechanical and electronic systems impact on the availability of certain production systems? (A3.2) (A3.3) (A3.4)
- How does the design of a product for specific manufacturing techniques limit the choice of production system? (A4.1)
- How does material selection in a commercially viable product impact the cost of using different production systems? (B3.1)
- Why is a deep understanding of how components are manufactured and assembled vital for effective product analysis and evaluation? (C3.1)
- To what extent does the selection of a production system affect the outcome of a product's life-cycle analysis? (C3.2)
